Product Details:
Payment & Shipping Terms:
|
| Product Name: | Plastic Roof Tile | Material: | Pvc |
|---|---|---|---|
| Weight: | 1.92kg To 5.8 Kg Per Sqm | Color: | White ,blue,red,yellow,green,grey Etc... |
| Thickness: | 1mm 1.2mm 1.5mm 1.8mm 2mm 2.2mm 2.3mm 2.5mm 2.8mm 3mm | Length: | Customize |
| Width: | 920mm 1130mm | Effective Width: | 840mm 1050mm |
| Pattern: | Trapeziod | Application: | Roof |
| Highlight: | plastic spanish roof tiles,corrugated pvc roofing sheets,thamal resistance plastic roof tiles |
||

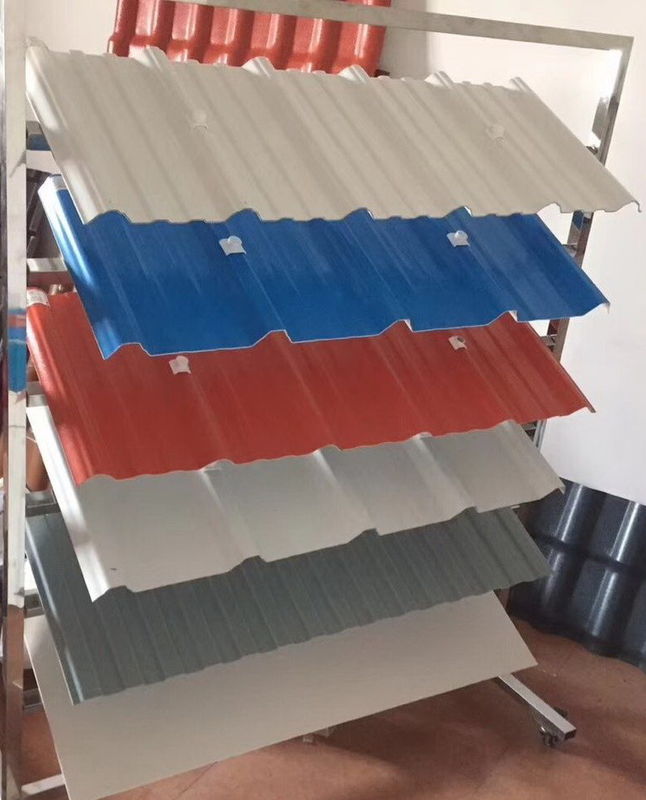

Light Weight Spanish Design Composite Thamal Resistance Plastic Roof Tile
We produce and designed the pvc plastic lightweight roofing sheets, to the highest standard, and pride ourselves on our attention to detail. We have been producing and distributing our roofing system since 2013, With full of the expirece of plastic material that our factory built our own tech and new designs
Product Specification:
| roduct Type: | Upvc Roofing Sheets |
| Shape: | Trepaziod Waves |
| Surface: | Plain |
| Layer Type: | 2 Layers; 3 Layers; 4 Layers |
| Color: | Green.White,Blue,Yellow,Gray |
| Width: | 920mm 1130mm |
| Available Width : | 840mm 1050mm |
| Thickness: | Generally 1.0mm-3.0mm |
| Application : | High-grade plant,steel plant, warehouse, farmer market and carport,etc. |
Features:
| 1. Corrosion resistance | |||
| 2. Sound insulation | |||
| 3. Acid and alkali and organic solvents | |||
| 4. Good resistance to impact and low temperature | |||
| 5. Flame retardant | |||
| 6. Easy to install, maintenance, and clean | |||
| 7. Environmental and healthy |
Installation:
| PVC tile installation should choose appropriate purlin spacing to prevent deformation cracking. |
| Water leakage ,specific reference to the following: |
| •The thickness of the pvc roof tiles is≤1.3mm to use the purling space≤600mm. |
| the circular arch roof to use for the purling space≤700mm.the thickness between |
| 1.3mm to 1.8mm of the tiles need to use for purling space ≤700mm. |
| the arched back roof to be ≤800mm.the thickness 1.8mm to 3mm of roof sheet to |
| use for the purling space as ≤800mm and circular arch style to use purling space≤900mm |
| •The installation of the corrugated pvc roof sheet have to cover two pitch of the sheet area on |
| the width and the trapezium pvc roof sheet to cover one pitch on the width and to cover >250mm on the length. |
| •If use tapping screw that need to drill a hole with ratio 2-3mm first. |
